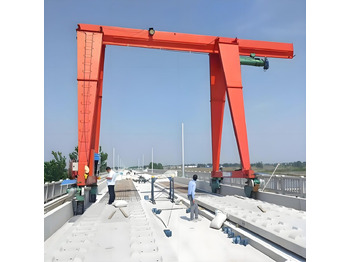

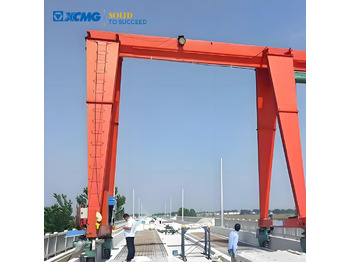

New Gantry crane XCMG Single Girder Tyre Gantry Crane

Specifications and models

Product model: MH type tire gantry crane;

Belonging category:Rubber Tyred Gantry Crane;

Product specifications: 1T-20 tons/lifting weight can be customized;

Technical parameters:

Span: 8-20 meters (M)/span can be customized.

Lifting height: 6-30 meters (M) Lifting height can be customized without standard.

Working level: A3/M3;

Power supply: customizable;

Cart speed: 10-20m/min;

Car running speed: 10-20m/min;

Lifting speed: 0.2-8 m/min;

Running speed: 0-35m/min;

Machine power: 20KW (according to customer requirements);

Adaptation slope: ± 5%;

Product customization

The parameters of the tire gantry crane need to be designed and produced according to the actual lifting weight, span and lifting height, and can also be designed and customized according to the needs of customers;

way of working

The tire gantry crane is used for the lifting, transportation and transfer of 32m, 24m and 20m steel frame and overall inner mold in the prefabricated field. Operation mode: can realize straight, oblique, horizontal and in-situ rotation mode. When heavy-load steering, the support cylinder acts on the ground to reduce the grounding specific pressure and shear damage of the tire. The whole machine adopts electromechanical and hydraulic integration micro-electric control technology, and the lifting and walking power are all hydraulically driven.

Purchase instructions

Please inform the following data when purchasing a gantry crane, so that we can confirm your needs faster!

1.Lifting weight;

2.Span (track center to guide rail center);

3.Lifting height (the center of the hook touches the ground);

4.Do you need to order tracks and sliding contact wires/cables (please provide the running length);

5.If you have more detailed information, please let us know, and we will give the price of the products sold directly by the manufacturer.

FAQ

What is the maximum lifting capacity of this tyre-mounted gantry crane?

The maximum lifting capacity of tyre gantry cranes depends on customer requirements. Common lifting capacities range from a few tonnes to several hundred tonnes.

How wide of a working area can it cover?

The range of the working area of these tyre gantry cranes depends on the customised span. Commonly used spans range from a few metres to tens of metres.

What is the height it can reach when lifting?

The height that this tyre gantry crane can reach when lifting depends on its design. Generally, the height varies from a few metres to tens of metres.

What kind of power system does it have and what is the fuel efficiency?

This tyre-mounted gantry crane typically has either an electric power system or a diesel engine power system. The fuel efficiency varies based on factors like load, operating time, and engine type. Electric systems tend to be more energy-efficient, while diesel engines’ efficiency depends on their size and technology.
