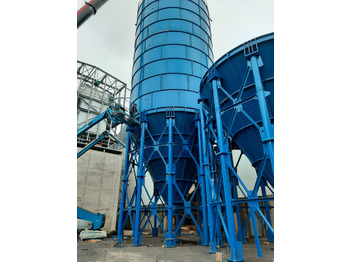

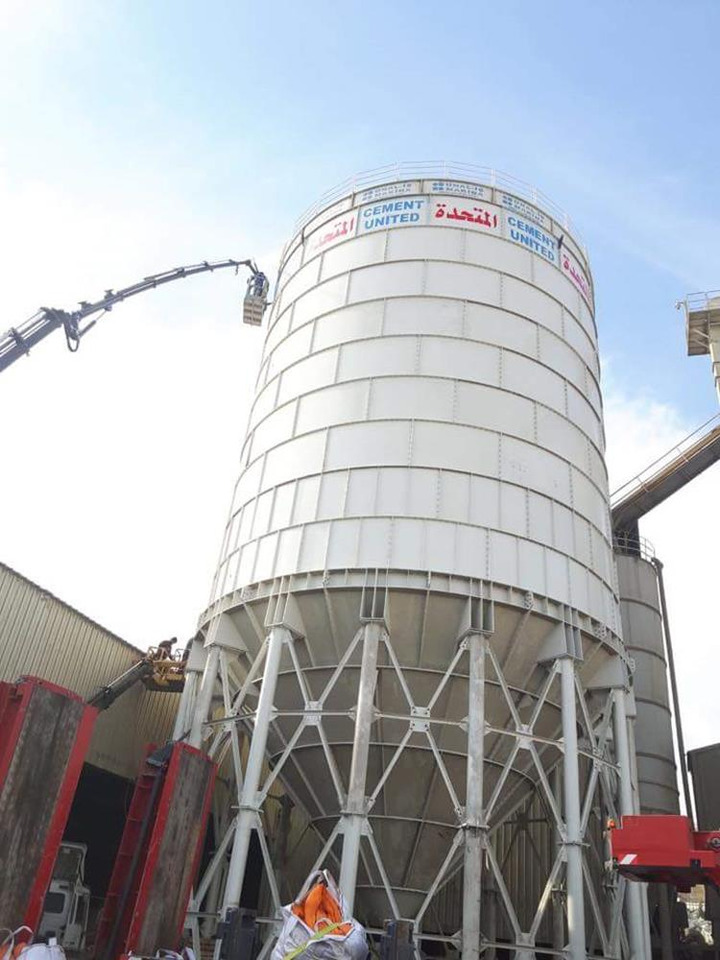

New Cement silo Constmach Zementsilo mit einer Kapazität von 3000 Tonnen

You can call us 24/7 for a 3000 ton cement silo for sale.

Our CS-3000 model cement silo is an excellent solution for optimizing your business processes with its high capacity and superior performance characteristics. with a capacity of 3000 tons, this silo, which you can use without interruption even in large-scale projects, offers a long-lasting use with its reliable and durable structure.

attracting attention with its height of 29,000 mm and width of 12,400 mm, the CS-3000 guarantees robustness and durability with its weight of 135,000 kg. Silo legs made of Ø 323 x 12 mm steel pipe material and foot rods made of NPL 80mm steel profile maximize structure safety and stability. the quality of the building components has been improved with 20-25 mm metal sheet bases and 10 mm sheet metal tapered parts.

The silo is equipped with an outer deck ladder starting from the base and ending at the upper hatch, and guard rails around the upper hatch. This design ensures ease of use and safety. It also has a 4" filling tube and extendable extension to the sole foot, which increases operational flexibility.

The silo is painted with 1 layer of anticorrosive paint and 2 layers of top coat epoxy paint, and the total paint thickness is designed as 140 microns. This coating ensures the long-term resistance of the silo to external factors.

Our CS-3000 model cement silo offers a safe and efficient solution with its meticulously calculated and approved designs. With its high capacity and durable structure, it is an ideal choice to make a difference in your projects.

Technical Specifications of CS-3000 - 3000 Ton Cement Silo

Silo Capacity 3.000 tons

​Silo Height 29.000mm

Silo Width Ø 12.400mm

The Basic Number is 16

Silo Outlet Ø 400 mm

Silo Weight 135.000 kg

Silo Foot Material Ø 323 x 12 mm steel pipe

Made As Foot Bar NPL 80mm steel profile

The Soles of the Feet are Made of 20-25 mm metal sheet

Made of Conical Part 10 mm sheet metal

Made From the Main Body 10-8-6 mm sheet metal

The Top Cover Is Made of Strip 6 mm sheet metal

The silo includes an external deck ladder starting from the floor and ending at the upper hatch

There Are Guard Rails Around The Top Cover of the Silo

The Filling Tube is 4" and has an extendable extension to the sole foot

All Necessary Statistics For Silos Are Produced According to Calculated and Approved Designs

Painting 1 coat of anticorrosive paint, 2 coats of top coat epoxy paint, total paint thickness 140 micro
